• The CompR 15-Inch Subwoofer is a 4 dual voice coil design, making it easy to get the most out of your amp.
• An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Revolutionary SoloKon technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
• To make their subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
• The CompR 15-Inch Subwoofer works best with a sealed or ported enclosure and 800 watts of recommended power. See below for more details.
• MEASUREMENTS - Overall Diameter: 15.375 | Mounting Depth: 7.9375" | Mounting Diameter: 13.75

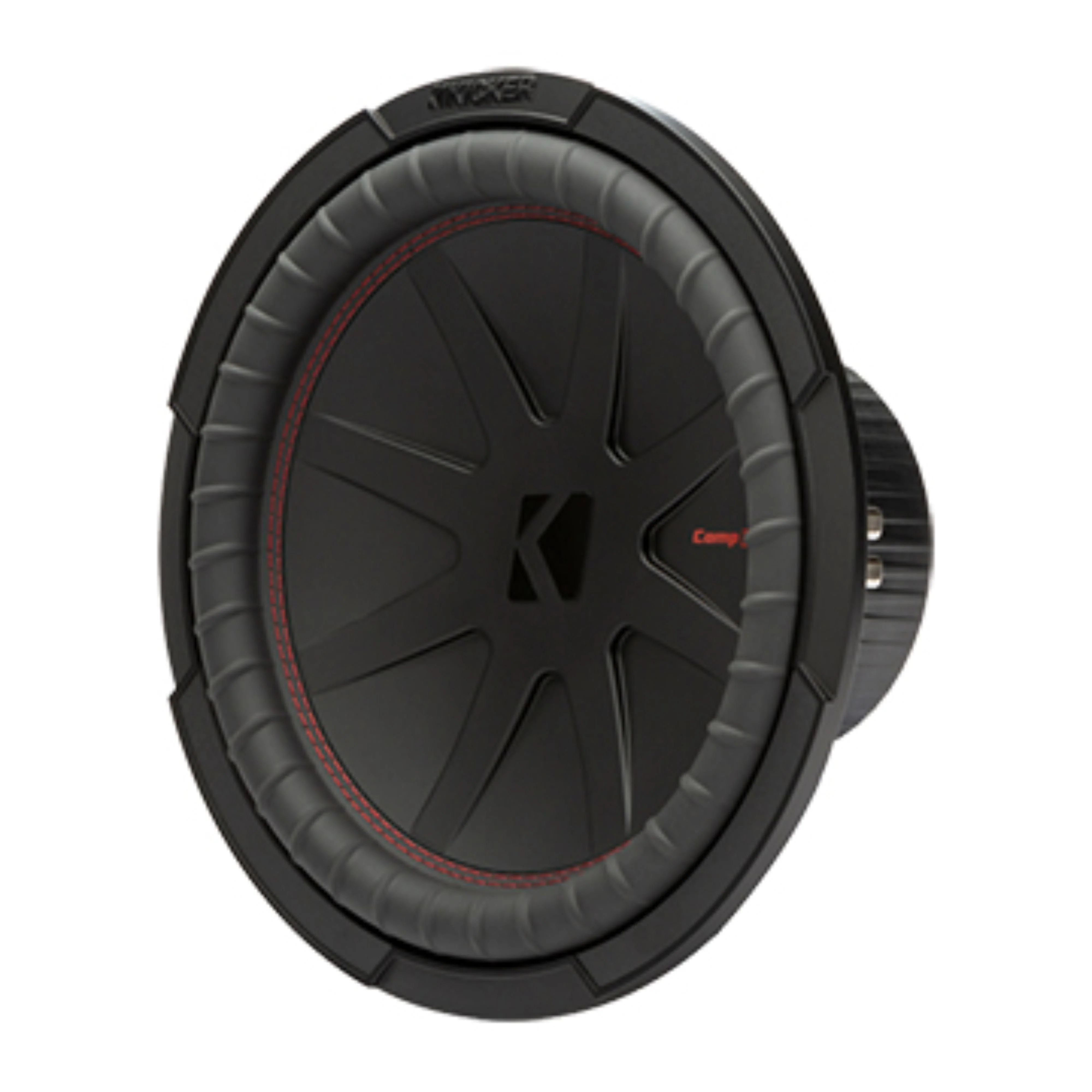

Kicker 15" 4 Ohm 1600W Peak CompR Pro Car Audio Subwoofer Black 48CWR154





Now even more efficient and sporting a slick, blacked-out look, the 2021 CompR sub is the very model of power and reliability.





15" CompR 4 Ohm - The CompR 15-Inch Subwoofer is a 4 dual voice coil design, making it easy to get the most out of your amp.





An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Our signature red double stitching makes an outstanding bond between the improved Santoprene surround and polypropylene woofer cone. Revolutionary SoloKon technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.





To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.





The CompR 15-Inch Subwoofer works best with a sealed or ported enclosure and 800 watts of recommended power. See below for more details.



This Listing Includes:


- (1) Kicker 15" 4 Ohm 1600W Peak CompR Pro Car Audio Subwoofer 48CWR154





Thiele/Small Parameters:


- Re | 7.34 - Ohm electrical voice coil resistance at DC


- Krm | 0.0073 - Ohm WRIGHT inductance mode


- Erm | 0.98 - WRIGHT inductance mode


- Kxm | 0.0836 - Ohm WRIGHT inductance mode


- Exm | 0.76 - WRIGHT inductance mode


- Cmes | 361.44 - F electrical capacitance representing moving mass


- Lces | 83.91 - mH electrical inductance representing driver compliance


- Res | 171.70 Ohm resistance due to mechanical losses


- fs | 28.9 - Hz driver resonance frequency


- Mms | 272.838g mechanical mass of driver diaphragm assembly including air load and voice coil


- Mmd | 246.822g mechanical mass of voice coil and diaphragm without air load


- Rms | 4.396 kg/s mechanical resistance of total-driver losses


- Cms | 0.111 mm/N mechanical compliance of driver suspension


- Kms | 9.00 N/mm mechanical stiffness of driver suspension


- Bl | 27.475 Tm force factor (Bl product)


- Lambda | -0.014 suspension creep factor


- Qtp | 0.534 total Q-factor considering all losses


- Qms | 11.269 mechanical Q-factor of driver in free air considering Rms only


- Qes | 0.482 electrical Q-factor of driver in free air considering Re only


- Qts | 0.462 total Q-factor considering Re and Rms only


- Vas | 103.034 I equivalent air volume of suspension


- n0 | 0.496% reference efficiency (2 pi-radiation using Re)


- Lm | 89.16 dB characteristic sound pressure level (SPL at 1m for 1W @ Re)


- Lnom | 89.53 dB nominal sensitivity (SPL at 1m for 1W @ Zn)


- rmse Z | 2.19% root-mean-square fitting error of driver impedance Z(f)


- rmse Hx | 2.44% root-mean-square fitting error of transfer function Hx (f)


- Sd | 809.28 cm diaphragm area


- Xmax | 14.5 mm Xmax (Linear Excursion)



Specifications:


- SIZE: 15"


- IMPEDANCE [Ohms]: 4 DVC


- Recommended Amplifier Power (watts RMS): 800


- Peak Power (watts, per ANSI/CTA-2031-A): 1600


- SENSITIVITY [dB 1w/1m]: 89.4


- MOUNTING DEPTH: 7.9375"


- MOUNTING DIAMETER: 13.75"


- MIN SEALED BOX VOL [cu. ft, L]: 1.8, 51


- MAX SEALED BOX VOL [cu. ft, L]: 3.0, 85


- MIN VENTED BOX VOL [cu. ft, L]: 3.0, 85


- MAX VENTED BOX VOL [cu. ft, L]: 5.0, 142





MEASUREMENTS:


- Overall Diameter: 15.375


- Mounting Depth: 7.9375


- Front Mount Baffle Cutout: 13.75





Package Dimensions:


- Length: 18"


- Width: 18"


- Height: 10.5"


- Package weight: 26.9 lb
